Warpage and Burn Marks in Injection Molding: Prevention and Solutions



Warpage and burn marks are two of the most common—and most frustrating—defects in injection molding. Warpage causes parts to twist, bow, or distort out of shape, while burn marks leave dark spots or charred streaks on the part surface. Both defects can render parts unusable, increase scrap rates, and damage your reputation with customers.

The good news: both defects are predictable and preventable. With proper part design, mold engineering, process optimization, and material handling, warpage and burn marks can be eliminated in most cases.

This guide provides an in-depth technical analysis of both defects—root causes, diagnostic methods, specific solutions for each cause, and prevention strategies. It's based on over 25 years of injection molding experience at Eastmaster Manufacturing Limited in Shenzhen, China.

Part A: Warpage in Injection Molding

What Is Warpage in Injection Molding?

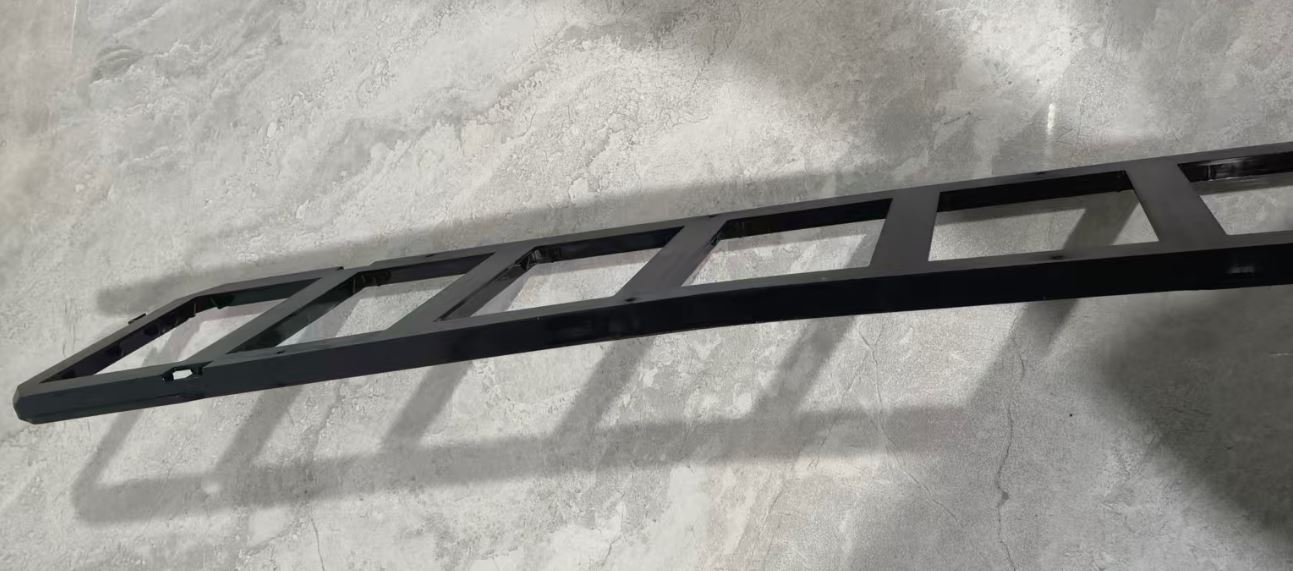

Warpage (also called warping, distortion, or deformation) is a dimensional defect where the molded part deviates from its intended shape after ejection from the mold. The part twists, bows, bends, or arcs—often visibly—which prevents it from meeting dimensional specifications or assembly requirements.

Warpage is fundamentally caused by uneven internal stresses within the part. These stresses develop during the molding process and become "locked in" as the plastic cools and solidifies. After ejection, these residual stresses gradually relax, causing the part to deform.

Types of Warpage

• Bowing/Warping: The part bends outward along one axis (like a potato chip)
• Twisting: The part twists along its length (corners no longer align)
• Angular warpage: Flat surfaces deviate from the intended angle
• Sink-induced warpage: Localized sinks on thick sections pull surrounding areas out of shape
• Ejection warpage: The part deforms during ejection due to insufficient draft angle or excessive ejection force

Root Causes of Warpage in Injection Molded Parts

Understanding the root cause is essential for eliminating warpage. Causes fall into four main categories:

1. Uneven Cooling

This is the #1 cause of warpage. When one side of the part cools faster than the other, differential shrinkage creates internal stresses that cause bending.

• Causes: Asymmetric part geometry, unbalanced mold cooling channel layout, different mold temperatures on core vs. cavity side
• Effect: The hotter side shrinks more, pulling the part toward that side
• Typical in: Box-shaped parts, parts with ribs on only one side, thick-to-thin transitions

2. Differential Shrinkage

Different areas of the part shrink at different rates due to variations in wall thickness, fiber orientation, or material distribution.

• Thick sections shrink more than thin sections
• Fiber-reinforced materials shrink less in the flow direction than in the transverse direction
• Crystalline materials (PP, PA, POM) have higher and more variable shrinkage than amorphous materials (ABS, PC, PMMA)

3. Orientation Effects

During filling, polymer molecules and glass fibers orient in the flow direction. This creates anisotropic shrinkage—the part shrinks differently in the flow direction vs. the transverse direction.

• Gate location determines flow direction and therefore orientation pattern
• Fiber-reinforced grades are more susceptible to orientation-induced warpage
• Parts filled from one end tend to bend toward or away from the gate

4. Process Issues

• Insufficient packing pressure or hold time: part shrinks more than expected
• Melt temperature too high: increases thermal stresses and shrinkage
• Cooling time too short: part is ejected while still too hot and deforms
• Injection speed too high: creates high orientation and residual stresses

How to Fix and Prevent Warpage

Design Solutions

1. Ensure uniform wall thickness throughout the part. Maximum variation: ±25% of nominal wall thickness
2. Use gradual transitions between thick and thin sections (max ratio 3:1 over a distance of 2× wall thickness)
3. Design symmetrically where possible—asymmetric parts warp more
4. Add ribs on both sides of the part to balance shrinkage forces
5. Use generous radii on all internal corners (R ≥ 0.5 × wall thickness)
6. Consider core-out thick sections to reduce wall thickness variation

Mold Solutions

1. Design balanced cooling channels—equal distance from mold surface on core and cavity sides
2. Use conformal cooling channels (3D-printed molds) for complex geometries
3. Independent mold temperature control on core and cavity sides (ΔT < 5°C)
4. Optimize gate location for balanced filling and minimal orientation effects
5. Add sufficient draft angles (minimum 1°) to prevent ejection warpage
6. Consider mold geometry compensation—intentionally over-sizing the mold to counteract predicted warpage

Process Solutions

1. Optimize packing pressure and hold time to minimize differential shrinkage
2. Increase cooling time—ensure part temperature at ejection is below HDT (heat deflection temperature)
3. Reduce melt temperature to minimize thermal stresses
4. Use a cooling fixture or jig after ejection to hold the part in shape until it reaches room temperature
5. For fiber-reinforced materials: adjust gate location and size to control fiber orientation

Material Solutions

• Switch to amorphous materials (ABS, PC) which have lower and more predictable shrinkage than crystalline materials (PP, PA)
• Use low-shrink grades specifically designed to reduce warpage
• For semi-crystalline materials: consider nucleated grades with more uniform shrinkage
• Reduce glass fiber content if orientation-induced warpage is severe (but this reduces stiffness)

Part B: Burn Marks in Injection Molding

What Are Burn Marks in Injection Molding?

Burn marks (also called gas burns, diesel burns, or black spots) are dark discolorations—usually black or dark brown—that appear on the surface of injection molded parts. They are caused by combustion of trapped air or degradation of the plastic material due to excessive heat or shear.

Burn marks typically appear at the end of flow paths, at weld lines, or in areas where air is trapped during mold filling. They are primarily a cosmetic defect, but they can also indicate underlying process problems that affect part integrity.

Types of Burn Marks

• Gas burns (diesel effect): Black or charred marks at the end of fill where trapped air compresses and ignites
• Material degradation burns: Brown or yellow discoloration caused by overheated or degraded plastic
• Shear burns: Localized burn marks caused by excessive shear heating in thin sections or sharp corners
• Vent burns: Burn marks directly at parting line vents where escaping gas ignites

Root Causes of Burn Marks

1. Insufficient Venting

The most common cause. As the mold cavity fills with molten plastic, air must escape through vent channels. If vents are too small, insufficient in number, or blocked, air becomes trapped and compressed. Compressed air heats up dramatically (diesel effect)—reaching temperatures high enough to burn the plastic or ignite the air itself.

• Required vent depth: 0.02–0.05 mm for most materials (0.03 mm for ABS, 0.025 mm for PC)
• Vent land length: maximum 1–2 mm
• Vent location: at end of fill, at weld lines, and in any air traps identified by Moldflow analysis

2. Excessive Injection Speed

High injection speed causes the melt front to advance rapidly, trapping air before it can escape through vents. It also generates excessive shear heating, which can locally degrade the plastic.

• Melt front can move faster than air can escape through standard vents
• Shear heating in thin sections or flow restrictions raises local temperature above material degradation point

3. Material Degradation

If barrel or nozzle temperature is too high, or if material has been in the barrel too long, the plastic can thermally degrade—releasing gases that cause burn marks.

• Typical in heat-sensitive materials: PVC, POM, flame-retardant grades
• Causes: excessive barrel temperature, long residence time, degraded check ring

4. Contamination or Regrind Issues

• Foreign materials (different plastic type, contaminants) in the resin can decompose at processing temperature
• Excessive regrind percentage: recycled material has already undergone one thermal cycle and is more prone to degradation
• Dirty or contaminated hopper, barrel, or mold surface

How to Fix and Prevent Burn Marks

Mold and Venting Solutions

1. Add or enlarge vents at all end-of-fill zones and air traps (identified by Moldflow analysis)
2. Ensure vent depth is appropriate for material viscosity (typically 0.025–0.05 mm)
3. Clean vents regularly—clogged vents are a leading cause of burning in production
4. Add vent grooves on parting line, ejector pins, and sliders—anywhere air can escape
5. Consider vacuum venting for critical surface parts—evacuates air from cavity before injection
6. Use vent inserts (porous metal) in deep pockets or hard-to-vent areas

Process Solutions

1. Reduce injection speed—especially at the final stage of cavity filling
2. Use multi-stage injection profile: fast fill for main portion, slow fill for last 10–20%
3. Reduce melt temperature by 10–20°C to minimize thermal degradation
4. Reduce back pressure to minimize shear heating in the barrel
5. Shorten barrel residence time—reduce shot size or cycle time if material is there too long

Material Solutions

• Dry material thoroughly—moisture can decompose into steam and cause burns
• Limit regrind percentage to maximum 15–20% (lower for heat-sensitive materials)
• Ensure material is free from contamination—clean hopper, dryer, and barrel
• For heat-sensitive materials (PVC, POM, flame-retardant grades): use special screws and barrels with low-shear design

Warpage and Burn Marks: Quick Diagnostic Reference（H2）

Symptom	Most Likely Cause	First Action
Part bows outward	Uneven cooling (core hotter than cavity)	Check and balance cooling channel flow
Part twists along length	Fiber orientation or asymmetric filling	Revisit gate location; run Moldflow analysis
Corners no longer square	Differential shrinkage in thick/thin sections	Redesign for uniform wall thickness
Warpage appears 24–48 hours later	Post-mold crystallization or stress relaxation	Increase cooling time; use annealing fixture
Black marks at end of fill	Trapped air (diesel effect)	Add/improve vents at end-of-fill zones
Brown/yellow discoloration	Thermal material degradation	Reduce melt temperature; check barrel heaters
Burns at parting line	Blocked or insufficient parting line vents	Clean and enlarge parting line vents
Burns near gate	Excessive shear at gate; gate too small	Enlarge gate; reduce injection speed

Real-World Case: Solving Warpage and Burns Simultaneously

A typical scenario at Eastmaster: a customer sent an ABS housing part (200 mm × 120 mm × 45 mm) with both warpage and burn marks.

Reported problems:

• Mounting surface warpage 1.2 mm out of flatness (specification: max 0.3 mm)
• Black burn marks on two corners opposite the gate
• 20% scrap rate in production

Root cause analysis:

• Warpage: Uneven wall thickness (3.5 mm on one side, 2.0 mm on the other) caused differential cooling and shrinkage
• Burn marks: Insufficient venting in far corners; injection speed too high for existing vent capacity

Solutions implemented:

1. Part redesigned: wall thickness equalized to 2.5 mm uniform with gradual transitions
2. Mold modified: added 8 additional vent slots (0.03 mm depth) at end-of-fill zones
3. Process optimized: two-stage injection—80% fast fill, 20% slow fill at end
4. Mold temperature balanced: core 55°C, cavity 50°C (ΔT = 5°C)

Results:

• Warpage reduced from 1.2 mm to 0.15 mm (within specification)
• Burn marks completely eliminated
• Scrap rate reduced from 20% to <1%

Warpage and Burn Mark Prevention Checklist

Design Stage:

• □ Wall thickness uniform (variation ≤ ±25%)
• □ Transitions between thick and thin sections are gradual
• □ Part geometry is as symmetric as possible
• □ Rib thickness ≤ 60% of nominal wall thickness
• □ Sufficient draft angles on all vertical surfaces (≥ 1°)

Mold Design Stage:

• □ Cooling channels balanced—equal distance from surface on both sides
• □ Venting designed at all end-of-fill zones (based on Moldflow analysis)
• □ Gate location optimized for balanced filling
• □ Vent depth appropriate for material (0.02–0.05 mm)
• □ Vent land length ≤ 2 mm

Production Stage:

• □ Material dried per manufacturer's recommendations
• □ Melt temperature within recommended range (not at upper limit)
• □ Injection speed profile includes slow fill at end of shot
• □ Packing pressure and hold time optimized
• □ Cooling time sufficient to reach safe ejection temperature
• □ Vents cleaned regularly (preventive maintenance schedule)
• □ Regrind percentage limited to 15–20%
